Honda GX630 300A MMA / TIG Pipeline Engine Driven Welder

Product Categories
Chongqing Lianwai Technology Co., Ltd.
Contact Now

Honda GX630 300A MMA / TIG Pipeline Engine Driven Welder

  • 1
  • 2
  • 3

Brand Name : Lianwai

Model Number : H300

Certification : CE

Place of Origin : China

MOQ : 5SETS

Price : USD3020-3100 FOB Chongqing per set

Supply Ability : 1000 SETS

Delivery Time : 20 work days

Packaging Details : Carton plus Pallet

Welding process : MMA, TIG

Welding current : 60-300A

Duty cycle : 60%/300A/32V

Auxiliary power output : DC 3kW / 220V

Engine : 12kW Hona GX630

Fuel tank : Gasoline 16L

Net weight : 110kg

Dimension : 910*735*690mm

Protection/Insulation class : IP23

Contact Now

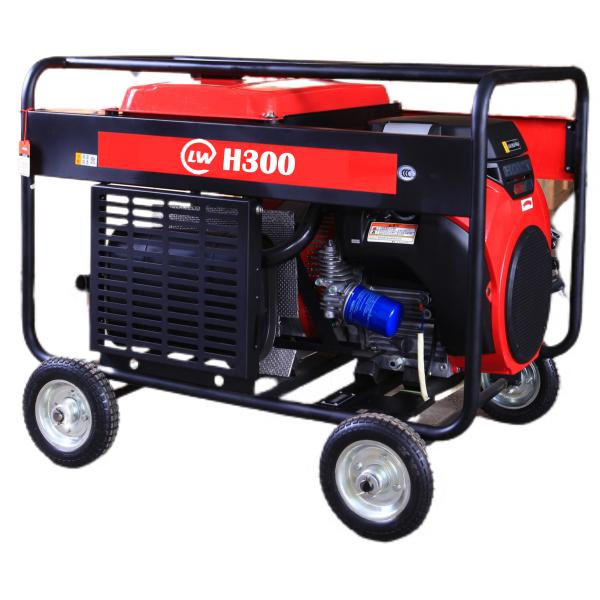

H300 300A Honda Welding Generator

Introduction

H300 is an classic portable oil/gas pipeline welding generator, widely applied in China railway, CNPC, SINOPEC, and field welding construction without power. H300 can output 300A welding current and DC 3kW 220V auxiliary power. Due to its small size, light weight, convenient movement and self-generation, it is ideal for welding in places without power supply and field construction operations.

Characteristics

1. Welding performance: adopts rotating magnetic field to generate electricity, and the current is adjusted by excitation,high efficiency, accurate adjustment. Smooth current, good dynamic characteristics, fast response.

2. Reliability: innovated coaxial structure, omit medium links for transmission of power, Simple structure, reliable performance and low failure rate.

3. Engine:adopts Honda GX630 engine; meanwhile,fit oil protection system and decompression starting system device, overcome the engine damage caused by lack of engine oil and start difficulty in the low temperature state.

4. Auxiliary power: DC 220V/3KW output power, running the site powered tools(lights, grinds,ect)

Application

1. Power tower construction,
2. Water pipe network construction,
3. Highway,railway isolation network installation,
4. Emergency welding and repair operations for ocean-going ships
5. Construction and emergency repair of offshore oil drilling platforms,

Main specification sheet

Model H300
Generator
Welding Type MMA, TIG
No-load Voltage (V) 89
Welding Voltage (V) 22.4-32
Welding Current (A) 60-300
Duty Cycle 60%
Auxiliary power(V) DC220/3kw
Engine
Power(kW) 12
Air Displacement (cc) 630
Valve Type Overhead Gas Valve
Ignition Method CDI
Oil Tank Capacity (L) 16
Oil Warning System Yes
Fuel Consumption(g/kW*h) 310
Starting up Electric start
Complete Appliance
Dimension (mm) 910*735*690mm
Weight (Kg) 110

Product photos

Honda GX630 300A MMA / TIG Pipeline Engine Driven Welder

Honda GX630 300A MMA / TIG Pipeline Engine Driven Welder


Product Tags:

MMA Pipeline Engine Driven Arc Welder



Engine Driven Arc Welder 300A



Gasoline 16L Engine Driven Welder


Quality Honda GX630 300A MMA / TIG Pipeline Engine Driven Welder for sale

Honda GX630 300A MMA / TIG Pipeline Engine Driven Welder Images
